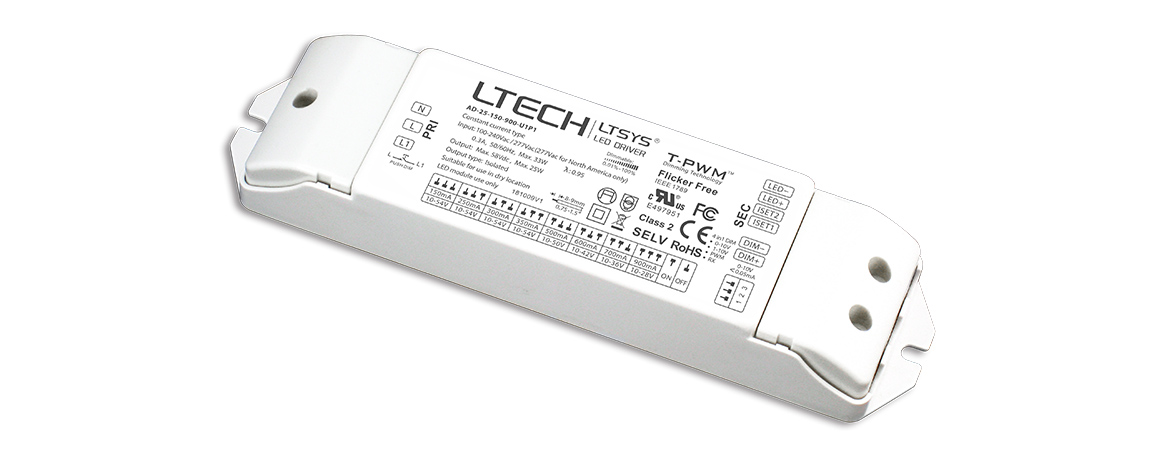

25W 150-900mA CC 0-10V Driver AD-25-150-900-U1P1

  • Description
  • Manual
  • Video
  • Related
Product Introduction:
  • 1、Dimming interface:0-10V(1-10V/PWM/RX), Push DIM
  • 2、Built-in high performance MCU, dimming curve can be customized.
  • 3、PWM digital dimming, no alter LED color rendering index.
  • 4、Dimming range: 0~100%, LED start at 0.1% possible.
  • 5、Non-load output voltage 0V to prevent damages to LED caused by poor contact.
  • 6、Multi-current & wide voltage, suitable for different power LED.
  • 7、Short circuit / Over-heat / Over load / Non-load protection.
  • 8、Class 2 power supply. Full protective plastic housing.
  • 9、Compliant with Safety Extra Low Voltage standard.
  • 10、Suitable for internal lights application for Ⅰ/Ⅱ/Ⅲ.
Technical Specs:


Dimming interface: 0-10V (compatible with 1-10V/PWM/RX), Push Dim
Dimming range: 0-100%, LED Startup Current<0.1%
Input voltage: 100-277Vac ±10% (Max. 90-305Vac)
Efficiency: >85%
Current Accuracy: ±5%
Output voltage: 10-54VDC
CC output: 150mA-900mA
Output power: 1.5W~25W
working temperature: ta: -30°C ~ 55°C tc: 75°C
Dimension: 175×44×30mm(L×W×H)
Package Size: 178×48×33mm(L×W×H)
Weight (G.W): 175g±10g
