The Matter constant voltage smart LED driver meets diverse lighting control needs, including dimming, color temperature adjustment, and color control (RGBCW). It also features LTECH’s NFC programmable technology, allowing parameters such as switch dimming fade time, power-on fade time, and brightness range to be edited via a mobile app. Multi-device setup is effortless, greatly improving engineering and maintenance efficiency.
| Chemi-Con capacitors | |
| Dimming Interface: | Matter over Thread, Matter 1.4 |
| Input Voltage: | 100-277V~ |
| Power Factor: | PF>0.95/100V~, PF>0.95/230V~, PF>0.85/277V~(at full load) |
| Efficiency: | 84%/100V~, 90%/230V~, 90%/277V~ |
| Fluctuation Level: | High frequency exemption level. |
| Output Voltage: | 24Vdc |
| Output Current: | Max. 2.5A |
| Output Power: | 0-60W |
| Dimming Range: | 0~100%, dimming down to 0.0001% |
| Certification: | UL,CUL,CE,FCC,ROHS |
| Warranty: | 5 years |
| Chemi-Con capacitors | |
| Dimming Interface: | Matter over Thread, Matter 1.4 |
| Input Voltage: | 100-277V~ |
| Power Factor: | PF>0.95/100V~, PF>0.95/230V~, PF>0.9/277V~(at full load) |
| Efficiency: | 85%/100V~, 91%/230V~, 92%/277V~ |
| Fluctuation Level: | High frequency exemption level. |
| Output Voltage: | 24Vdc |
| Output Current: | Max. 4.0A |
| Output Power: | 0~96W |
| Dimming Range: | 0~100%, dimming down to 0.0001% |
| Certification: | UL,CUL,CE,FCC,ROHS |
| Warranty: | 5 years |
| Rubycon capacitor | |
| Dimming Interface: | Matter over Thread, Matter 1.4 |
| Input Voltage: | 220-240Vac |
| Power Factor: | PF>0.98/230V~ (at full load) |
| Efficiency: | 92% |
| Fluctuation Level: | High frequency exemption level. |
| Output Voltage: | 24Vdc |
| Output Current: | Max. 3.125A |
| Output Power: | 0-75W |
| Dimming Range: | 0-100%, down to 0.0001% |
| Certification: | CCC,TUV,CB,CE,EAC,RCM,ENEC,ERP,ROHS |
| Warranty: | 5 years |
| Rubycon capacitor | |
| Dimming Interface: | Matter over Thread, Matter 1.4 |
| Input Voltage: | 220-240Vac |
| Power Factor: | PF>0.98/230V~ (at full load) |
| Efficiency: | 92% |
| Fluctuation Level: | High frequency exemption level. |
| Output Voltage: | 24Vdc |
| Output Current: | Max. 3.125A |
| Output Power: | 0-75W |
| Dimming Range: | 0-100%, down to 0.0001% |
| Certification: | CCC,TUV,CB,CE,EAC,RCM,ENEC,ERP,ROHS |
| Warranty: | 5 years |

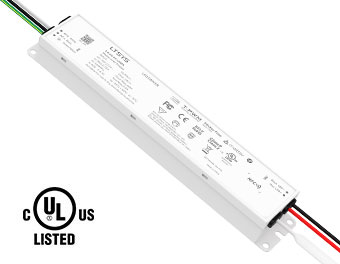

![[field:title/]](/images/pdf.jpg "60W 24V UL Certification NFC CV Matter LED driver LA-60-24-U1MA Manual"){kind=small}
