Product Features

Standard DMX/RDM interfaces; Set addresses via the digital display and buttons.

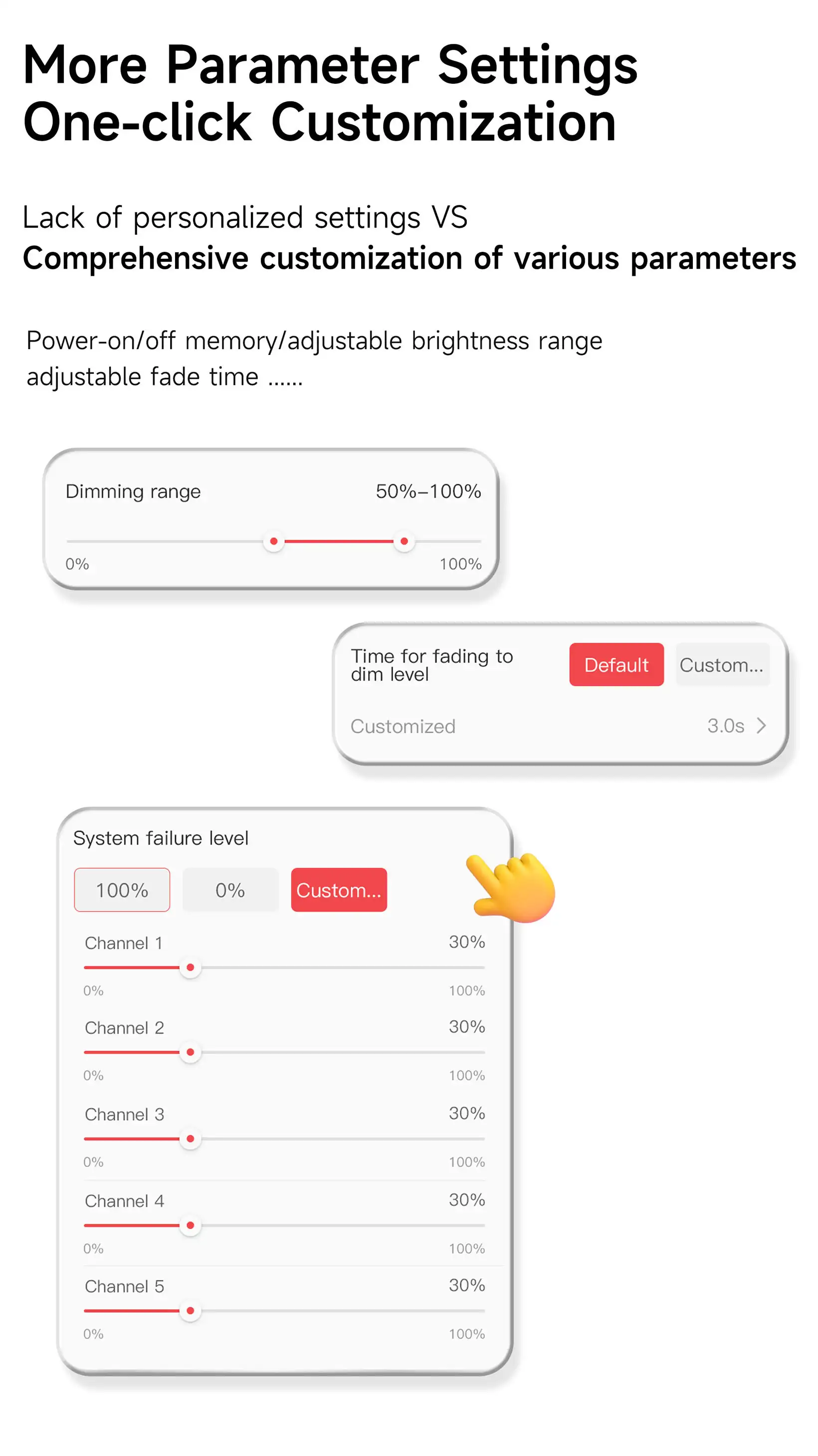

Parameter modification can be done via an RDM master controller or a mobile APP, eliminating the need for high-altitude operations.

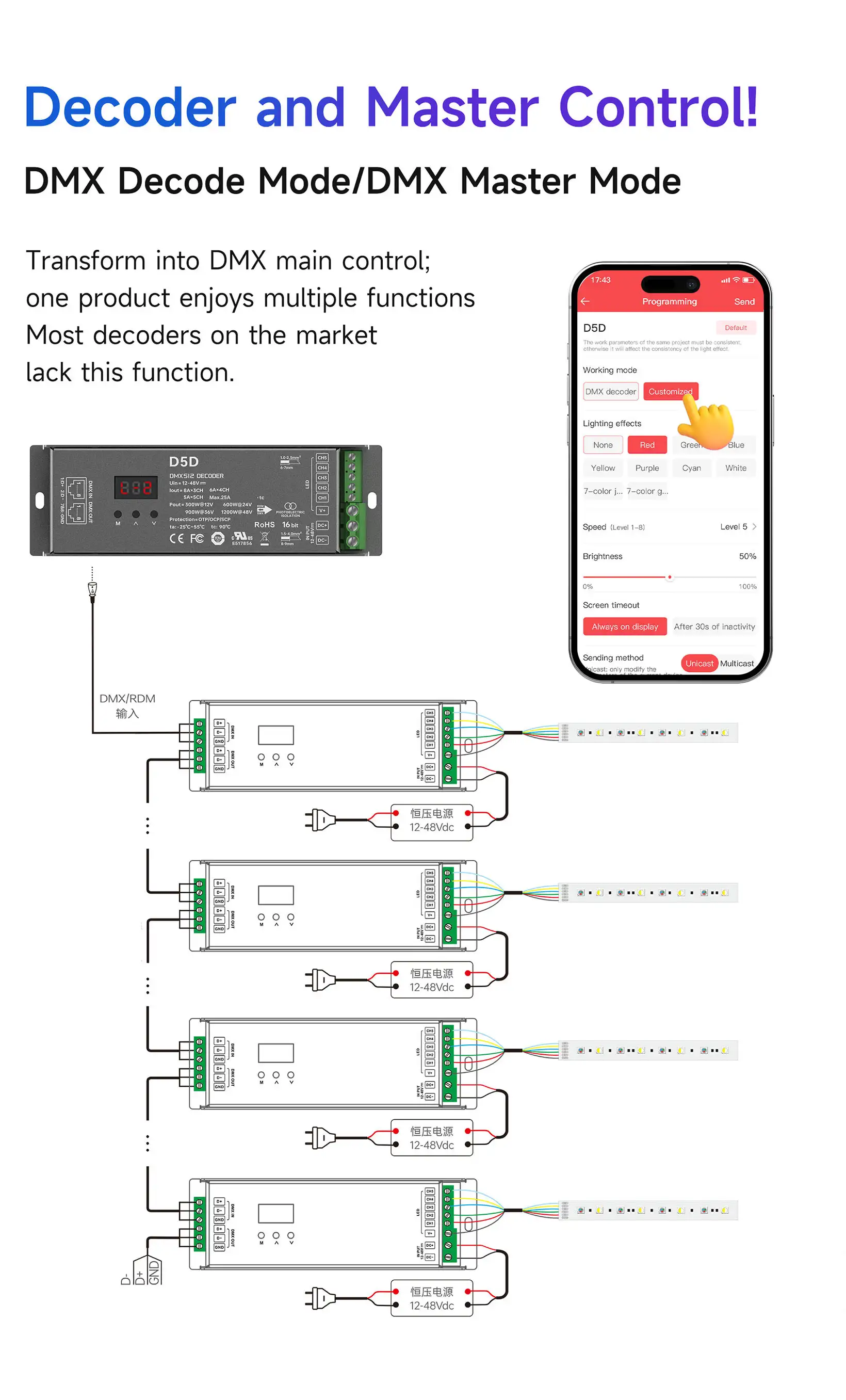

DMX decoding mode and DMX control mode are switchable, In the control mode, other decoders can be controlled by selecting preset lighting effects output.

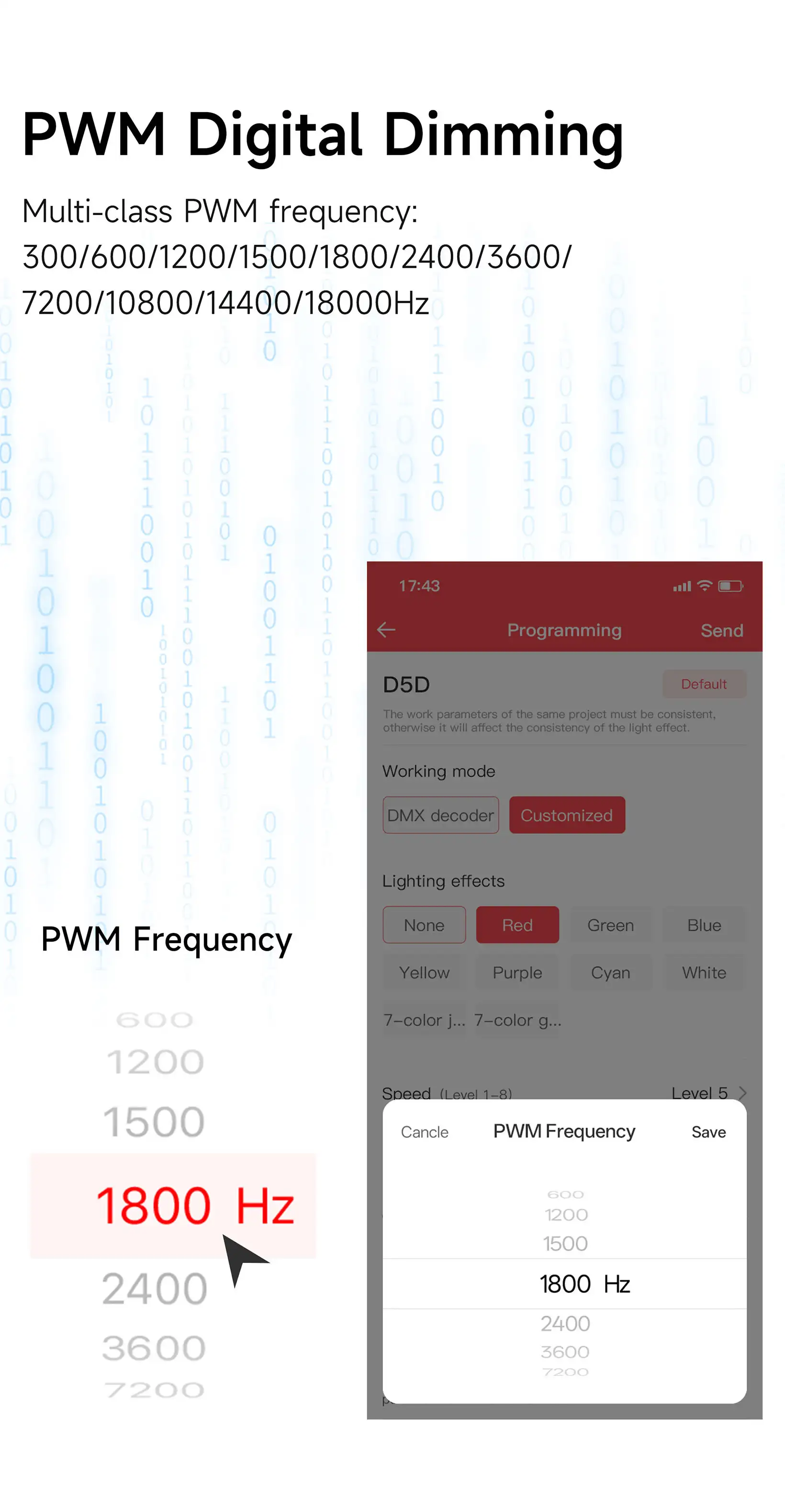

PWM frequency options: 300/600/1200/1500/1800/2400/3600/7200/10800/14400/18000Hz.

16bit (65536 levels)/8bit (256 levels) gray scale optional.

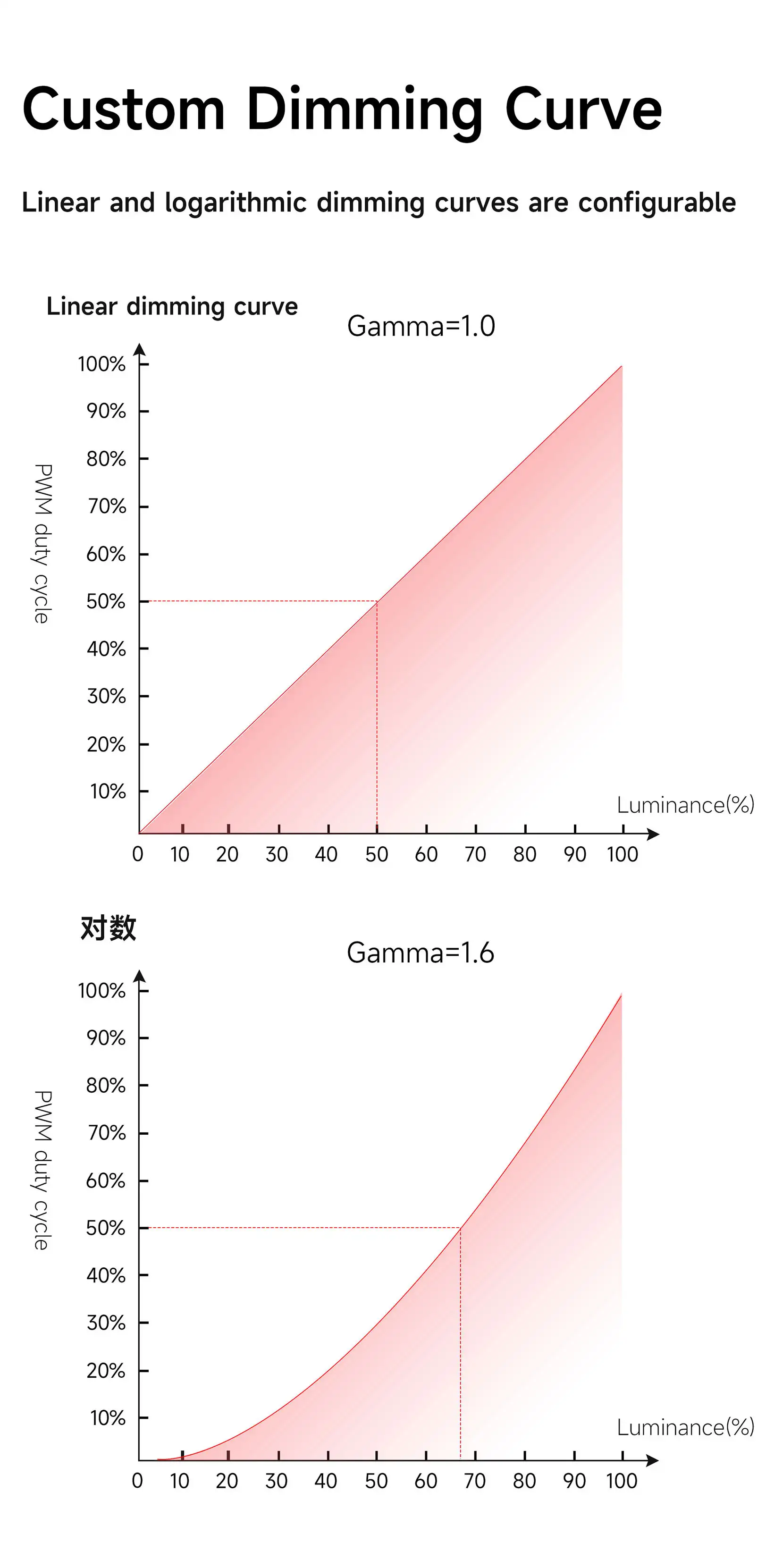

Linear and logarithmic dimming curve optional.

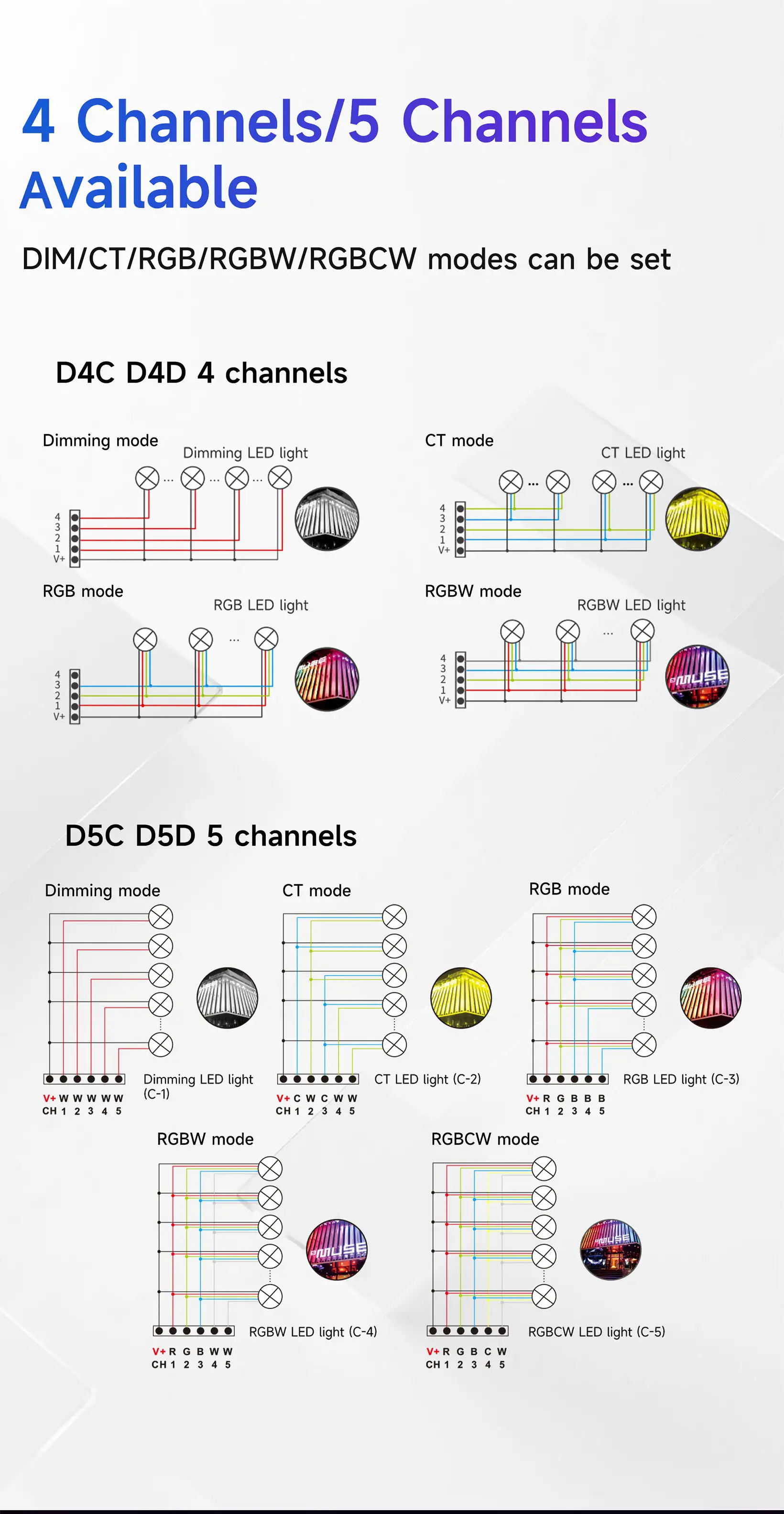

DIM/CT/RGB/RGBW/RGBCW mode optional (1/2/3/4/5 DMX channel output).

Provide 10 lighting effects, 8 speed levels of dynamic modes, and 255 brightness levels.

Supports screen display time setting. The nixie tube remains on, and will turn off if there is no operation within 30 seconds.

Short-circuit, over-temperature, over-current, and reverse polarity protection, with automatic recovery.

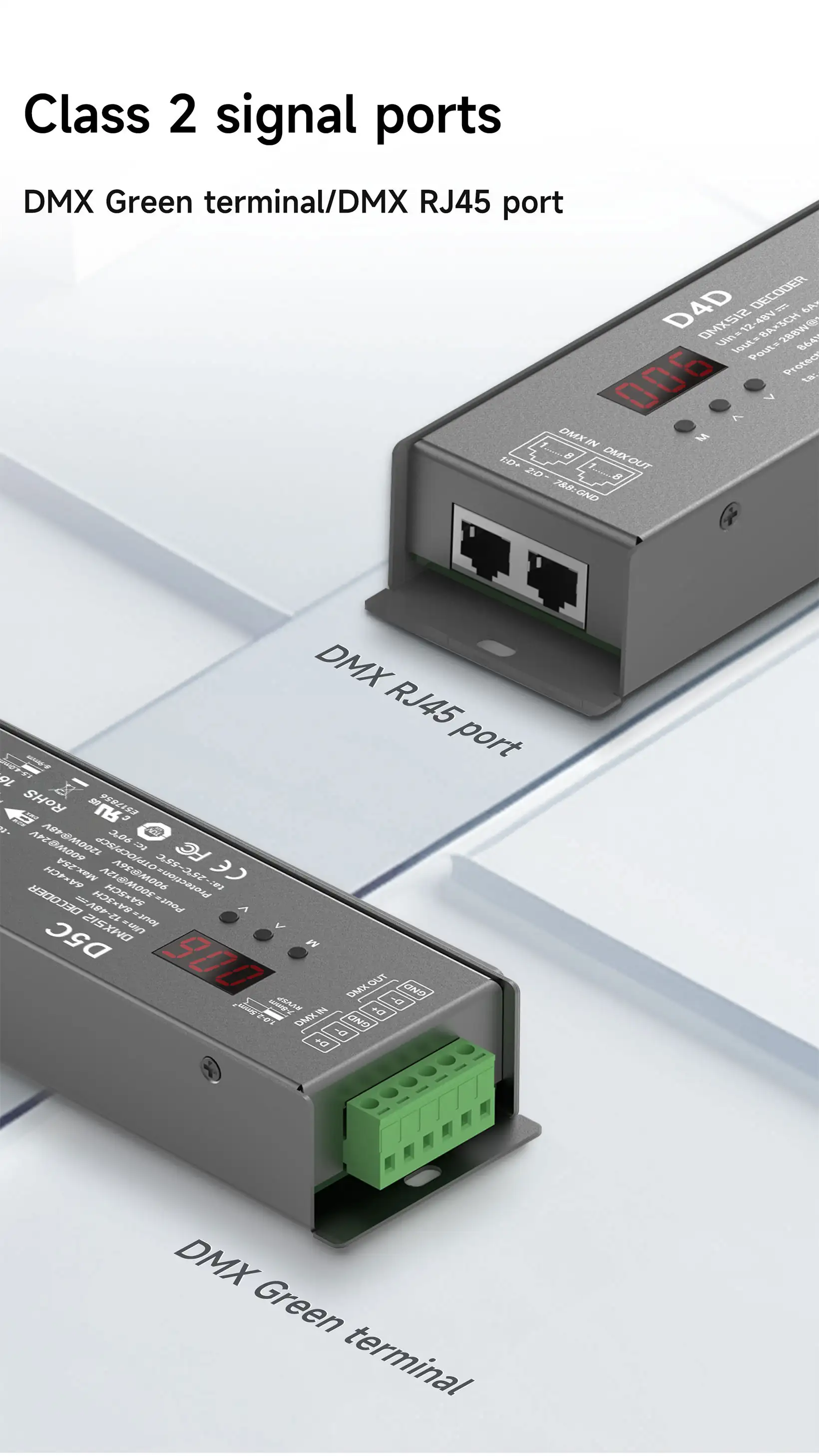

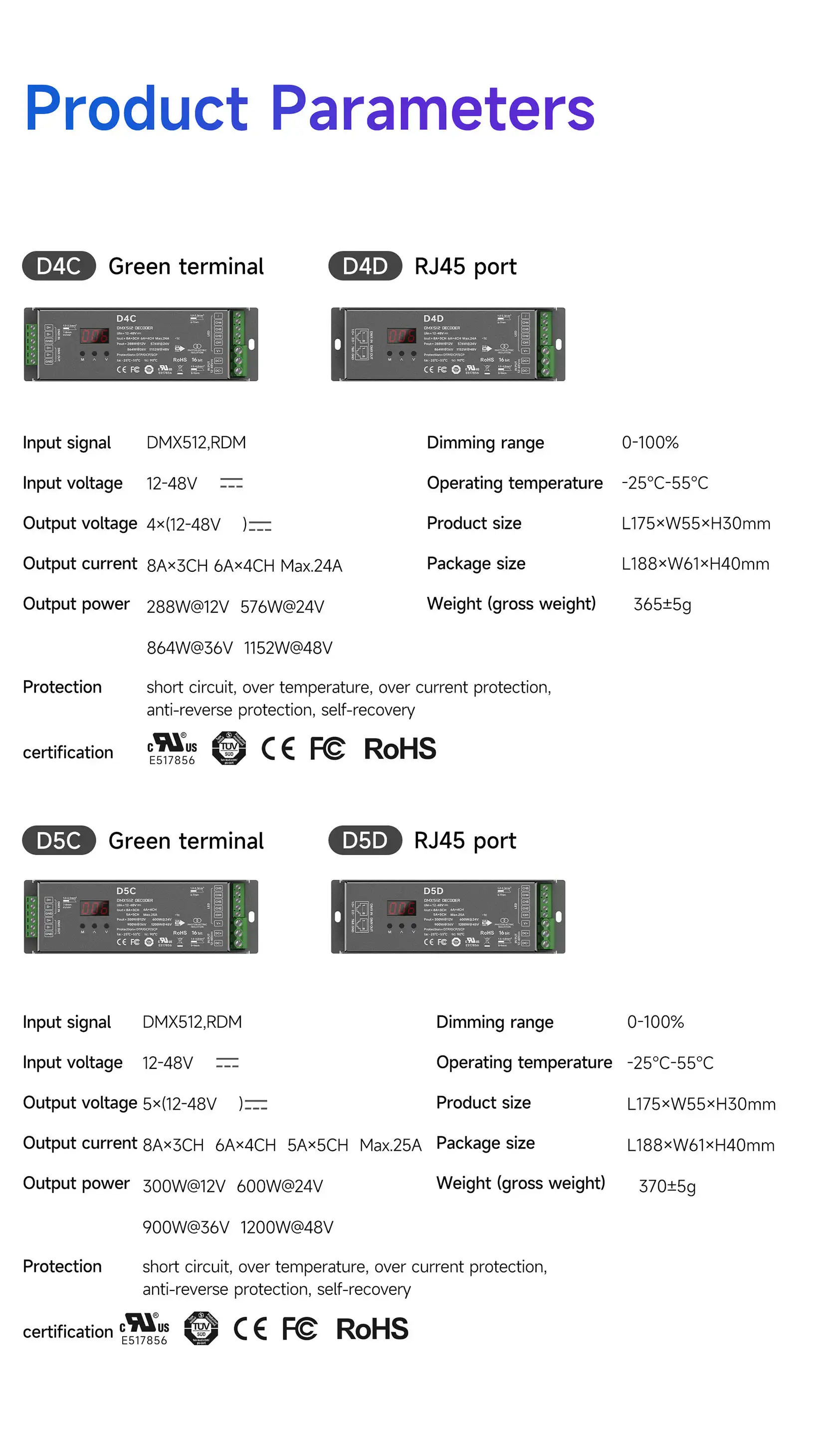

D5C has green terminal DMX interfaces, D5D has RJ45 DMX interfaces.
